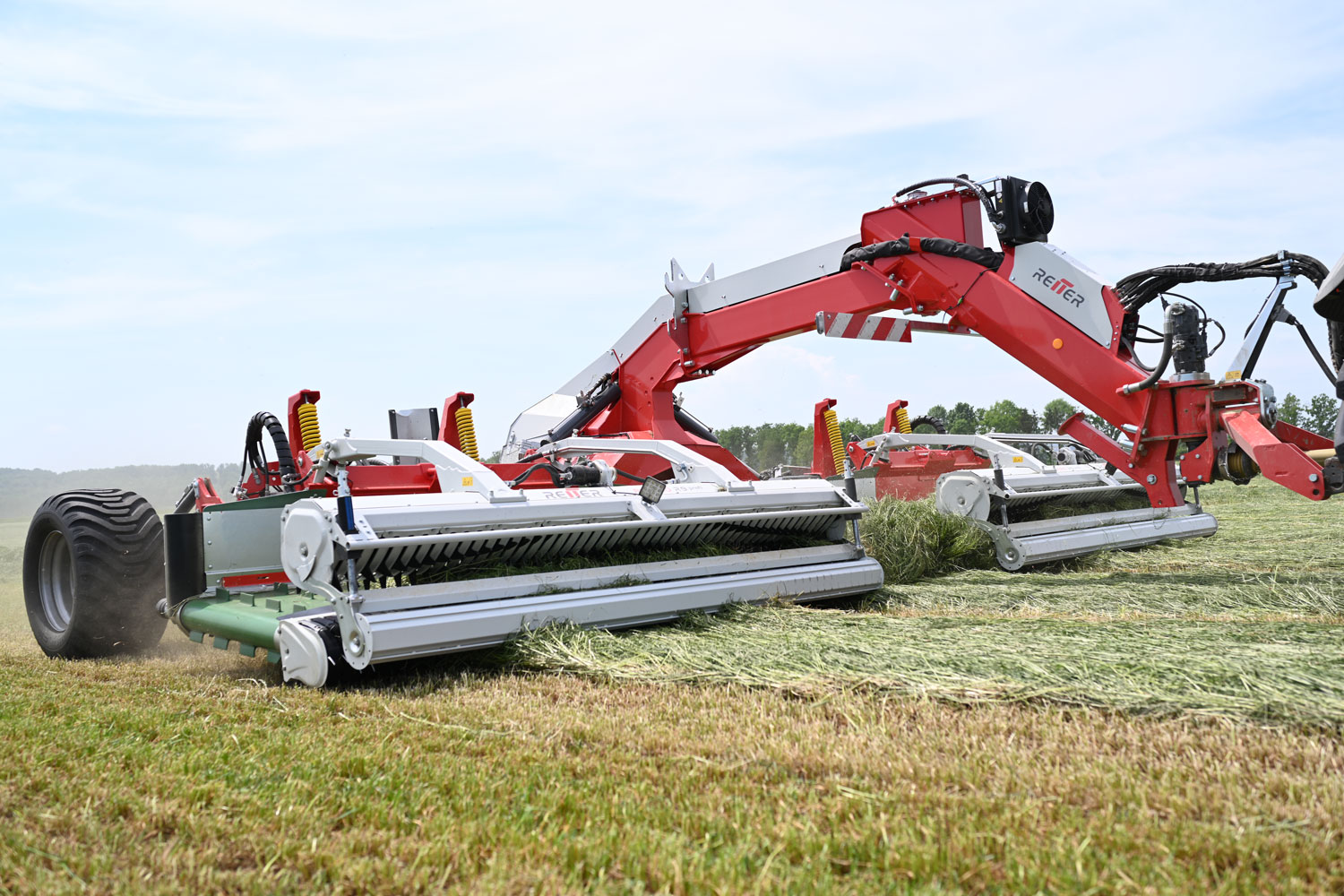

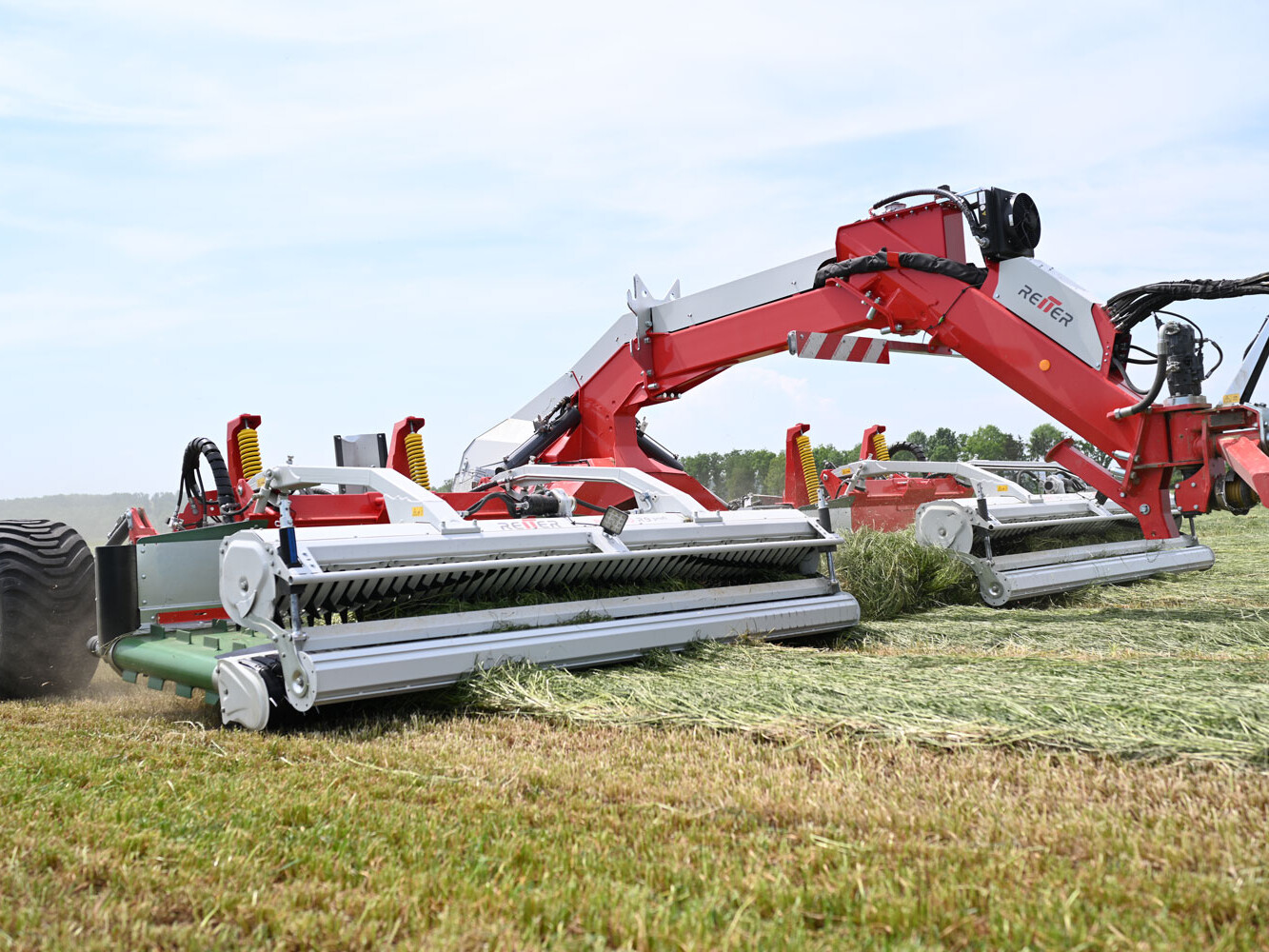

RESPIRO R9 profi The future of raking
Effective forage flow, the RESPIRO belt rake optimizes your harvest!
Thanks to its high operational flexibility, the machine can be used universally for a wide range of crops and harvesting methods. Minimal forage contamination thanks to the unique elastic pick-up, the trailing tines and the unique 4-wheel chassis, which guides the working units precisely over any uneven ground thanks to the 4-bar kinematics. All these features allow a high working speed with the best working results. Practitioners confirm the outstanding quality of work. The many positive effects of clean forage create the added value that makes this technology a highly profitable investment.
The first choice for contractors, large farms and farmers. See for yourself.
Master of flexibility
VERSATILITY RESPIRO R9

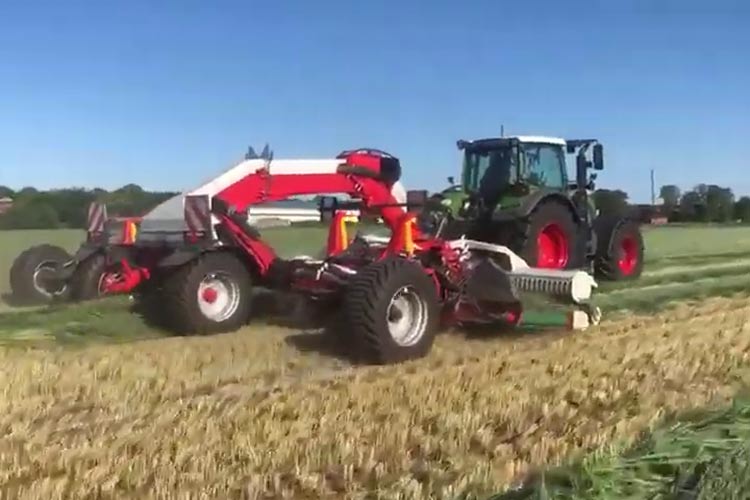

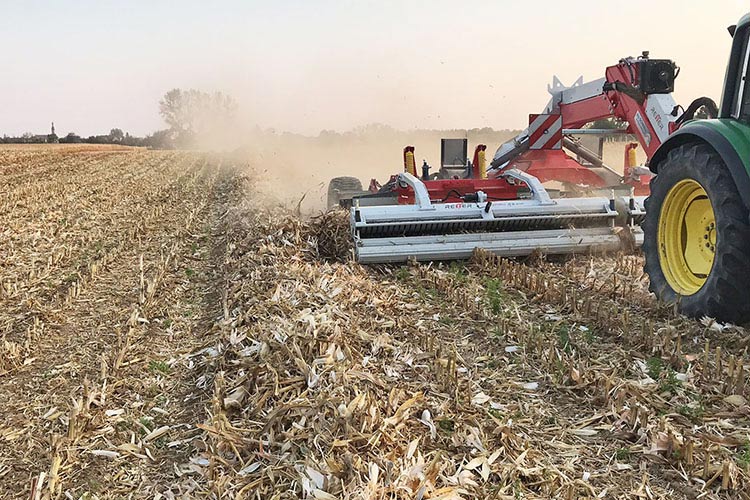

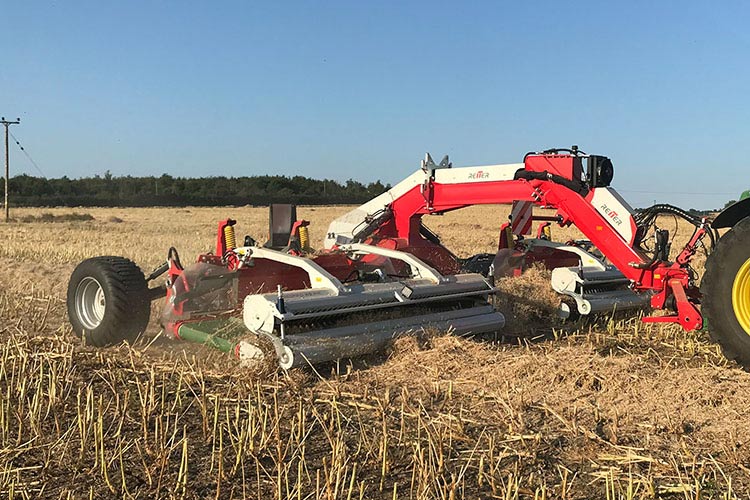

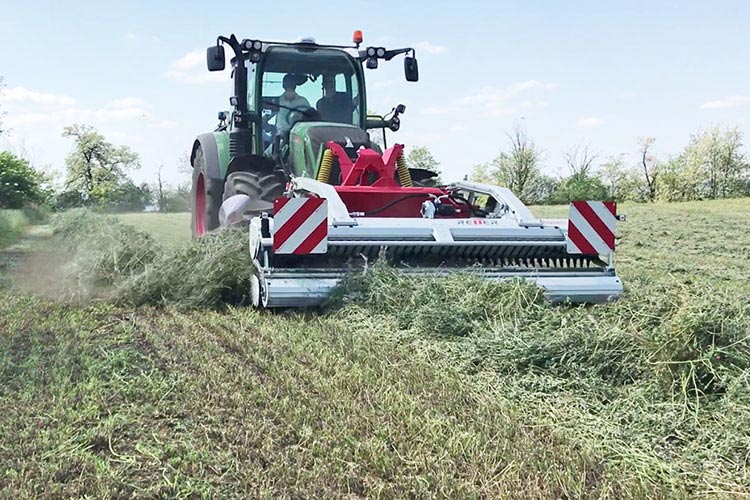

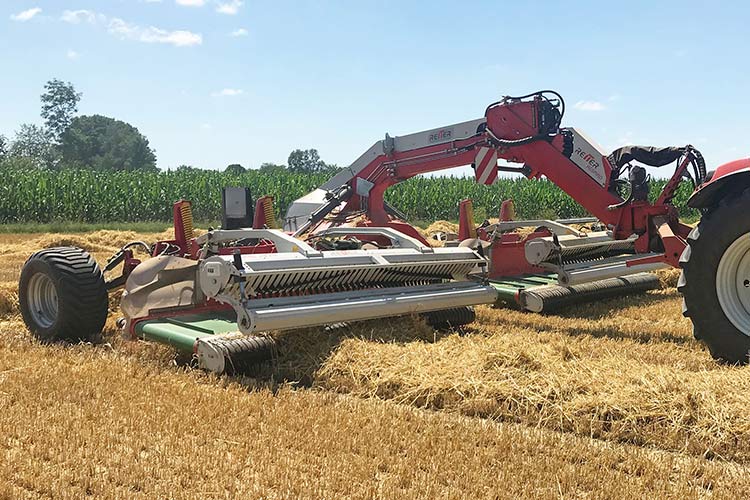

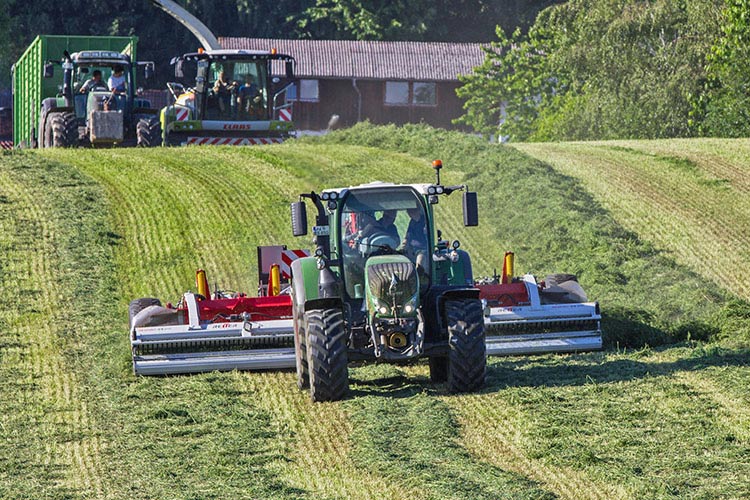

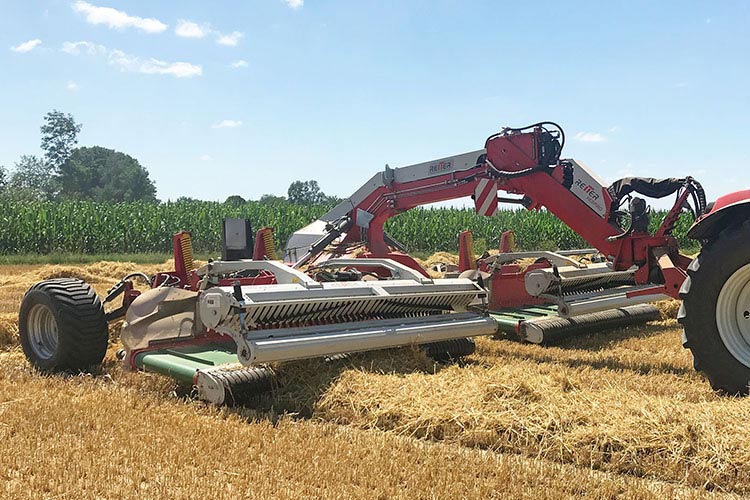

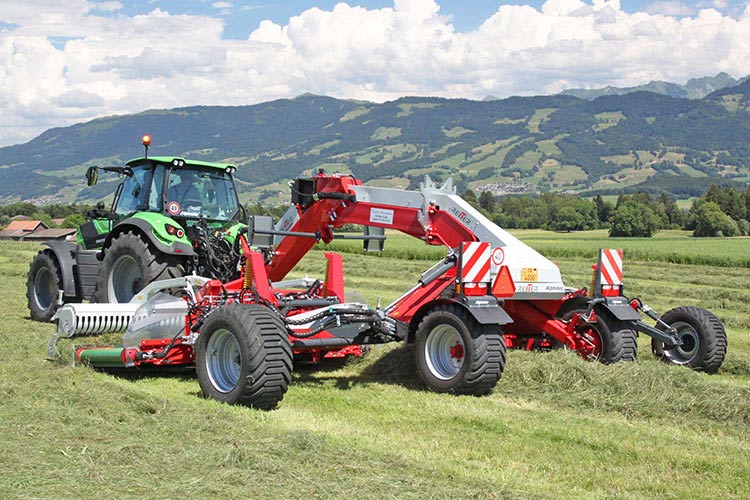

The most universal machine on the market. Thanks to the various placement options, it always produces the right swath mass for the subsequent harvesting technology. Whether wet permanent grassland, dry alfalfa or thick straw crops. The RESPIRO R9 profi masters everything, the operating conditions are almost endless.

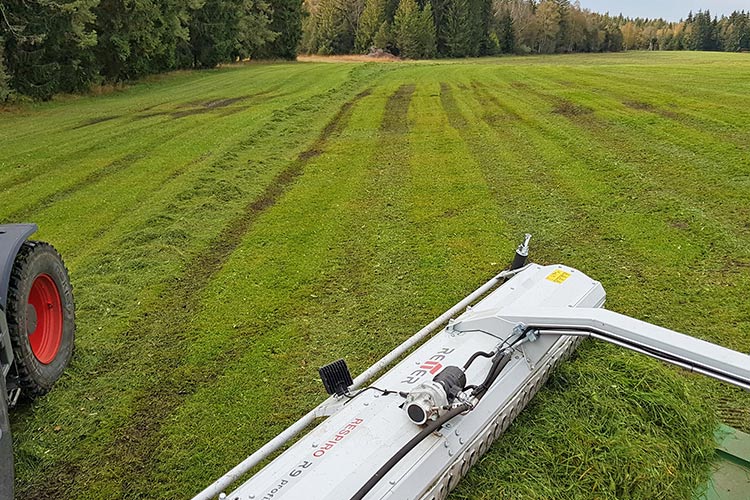

Different working conditions

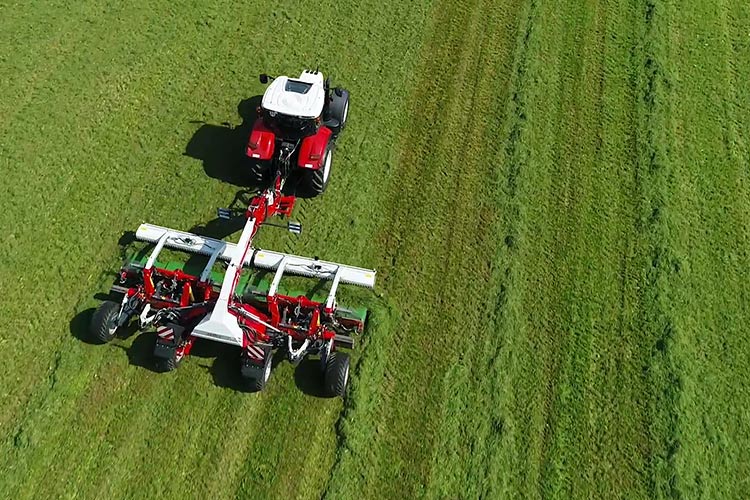

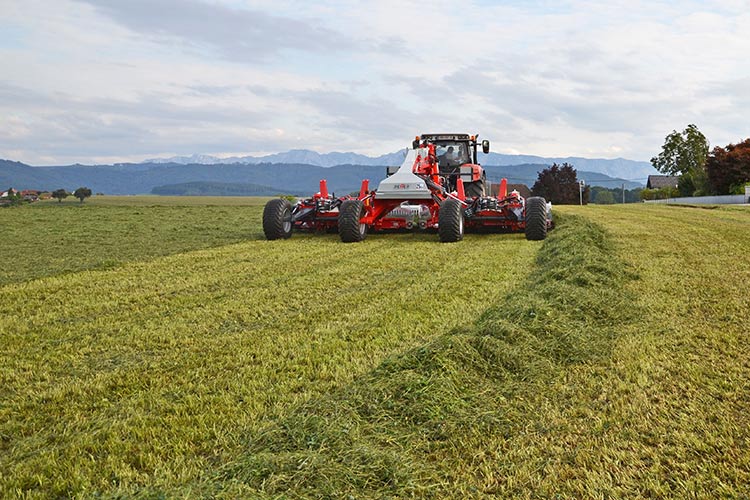

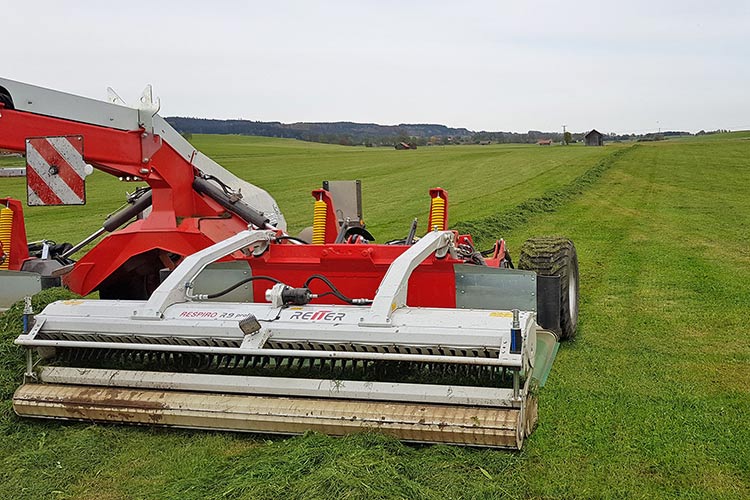

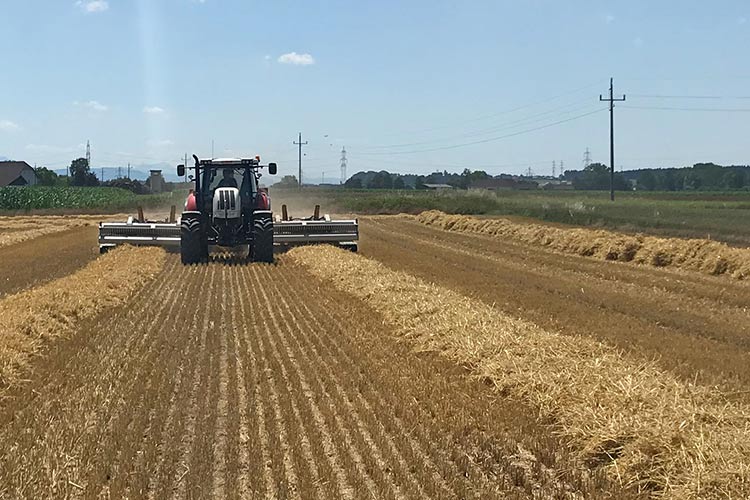

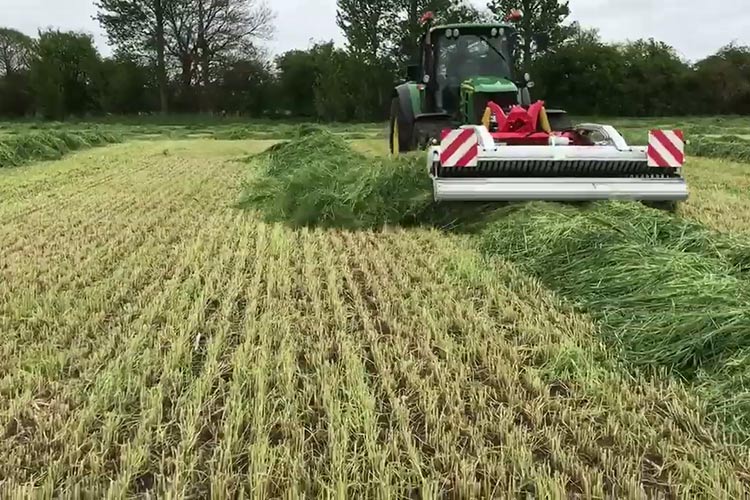

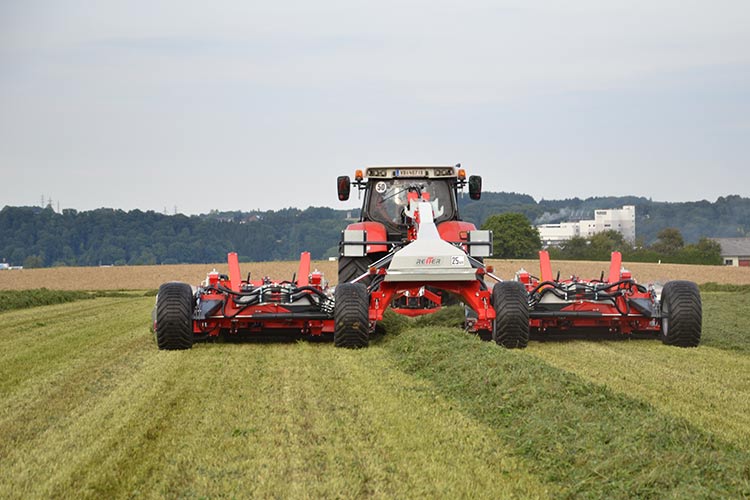

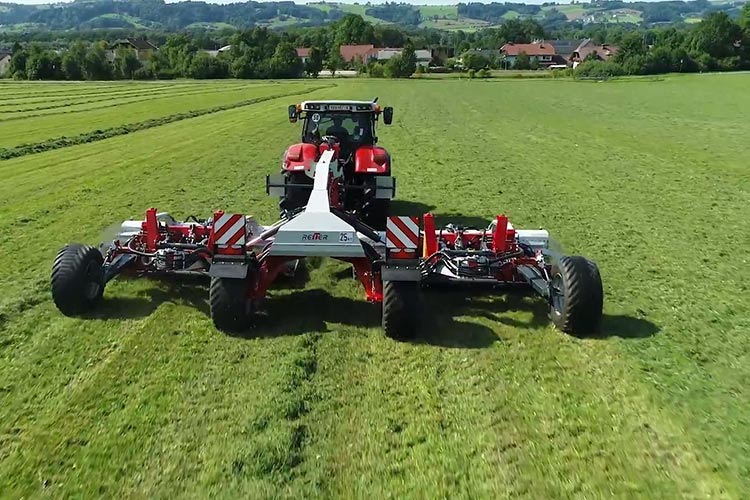

Possibilities of swath placement

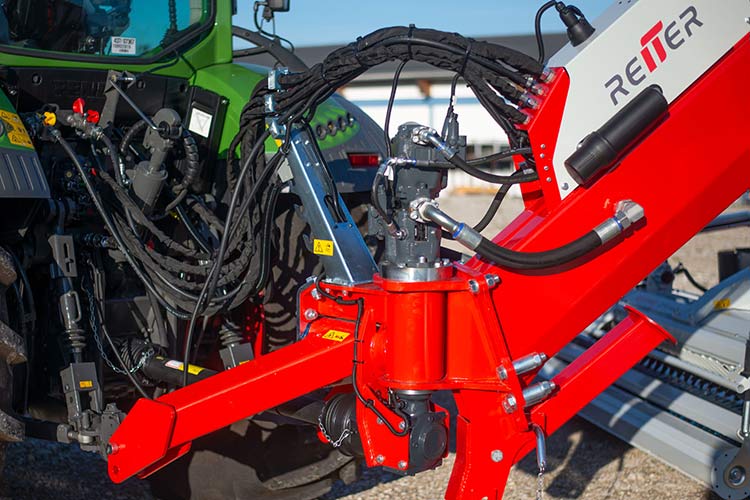

Pivoting lower link hitch cat. 2 – pivot point behind lower link axle
- High maneuverability
- Very good tracking properties
No relative movement between pump and tank
- Suction and pressure lines do not move
- Longer service life of the hoses
Support foot on frame

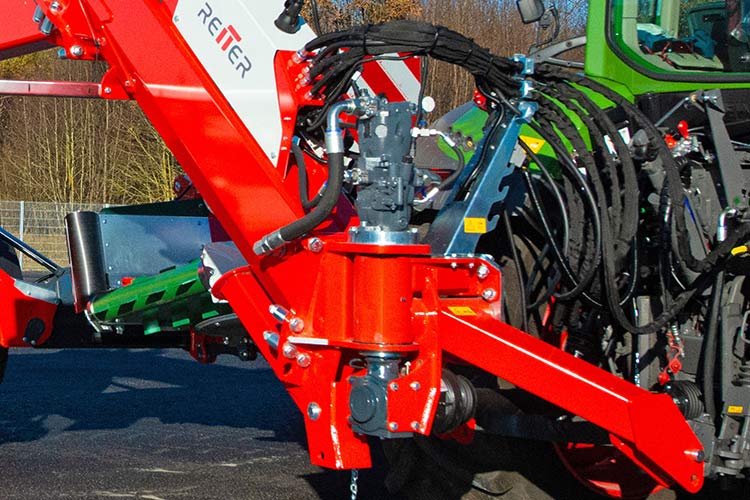

Pick-up, rotor and belt drive via on-board hydraulics Double axial piston pump
- Delivery rate can be set on the terminal independently of the PTO speed
- Perfect adaptation to the harvest situation
Oil tank integrated in the frameOil cooler runs permanently
Robust construction from the attachment to the chassis
- Long service life

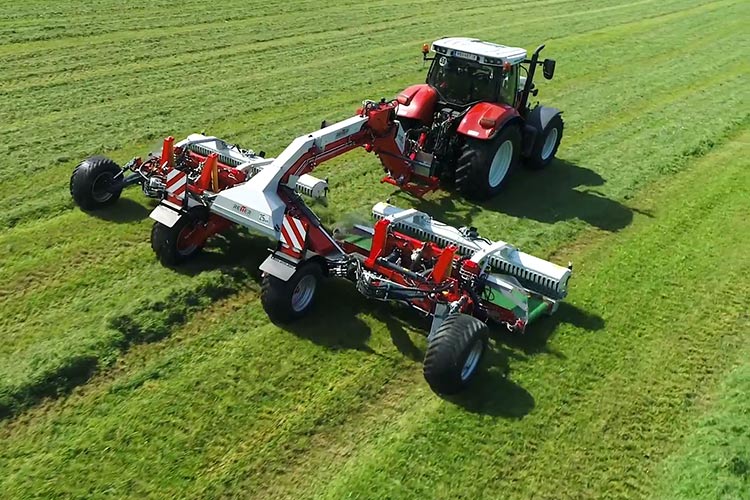

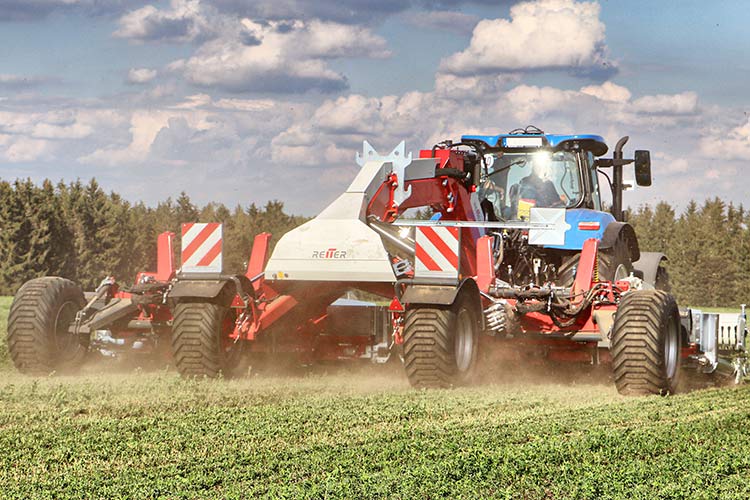

Unique 4-wheel chassis
- Smooth running and perfect ground tracking
- Precise management of the work units
- Very low ground pressure
- No rocking at the headland
- Perfect for individual lifting
- Extremely suitable for slopes – no tilting, no sliding

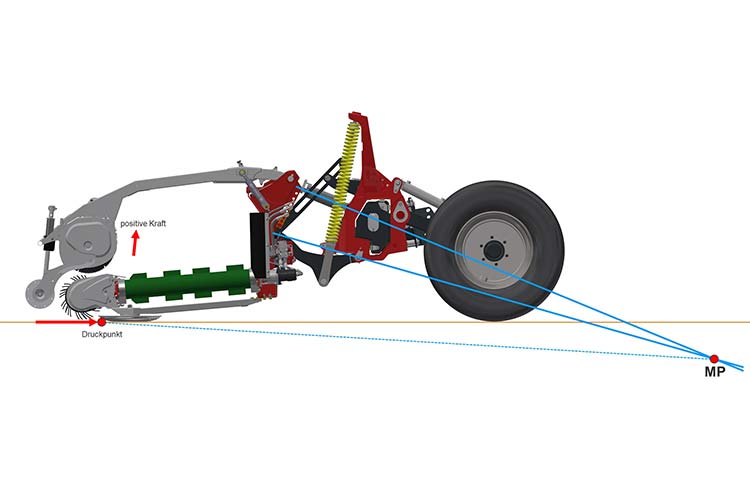

Sophisticated kinematics for guiding the work units
- Two lower links and one hydraulic top link
- Instantaneous pole is below the floor
- Simple upward movement of the work units
- The working unit is lighter when in use – less wear on the sliding discs, turf protection
- Enables higher driving speed
- Long service life

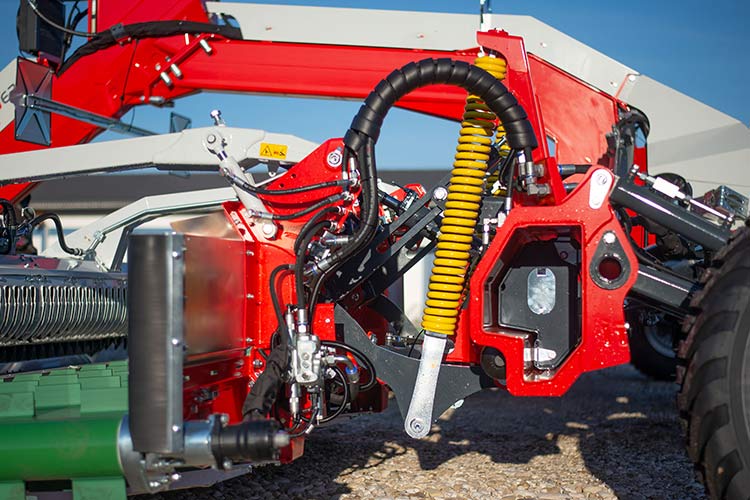

Perfect mechanical relief of the work units
- Low support weight
- Fast reaction due to spring relief
- Boomerang handlebars for even
- Relief over the entire working path +/- 300 mm
Fully-fledged lifting gear on the chassis boom
- 3-point attachment – best guidance over uneven floors

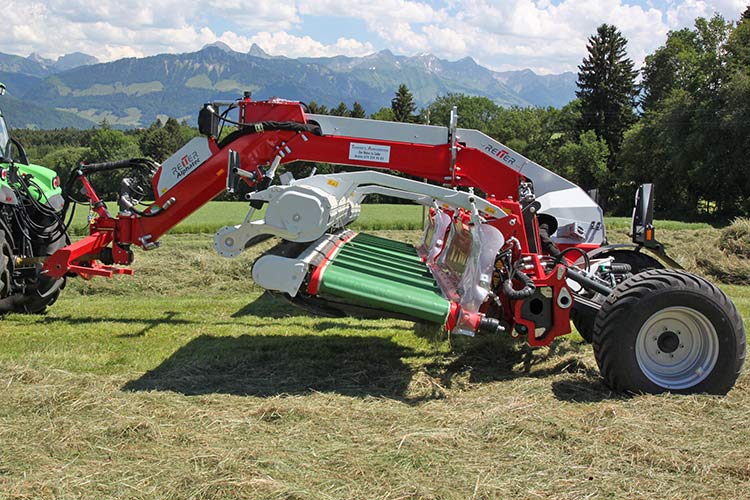

High ground clearance at the headland
- Ideal for driving over laid swaths
Work units are always lifted parallel to the floor
- Very fast entry and exit Individual excavation possible
- No rocking thanks to 4-wheel chassis
Flying suspension in the straw insert due to lowering limiter
- is made possible by 4-wheel chassis
Excavation of the 2 working units (2 DW)

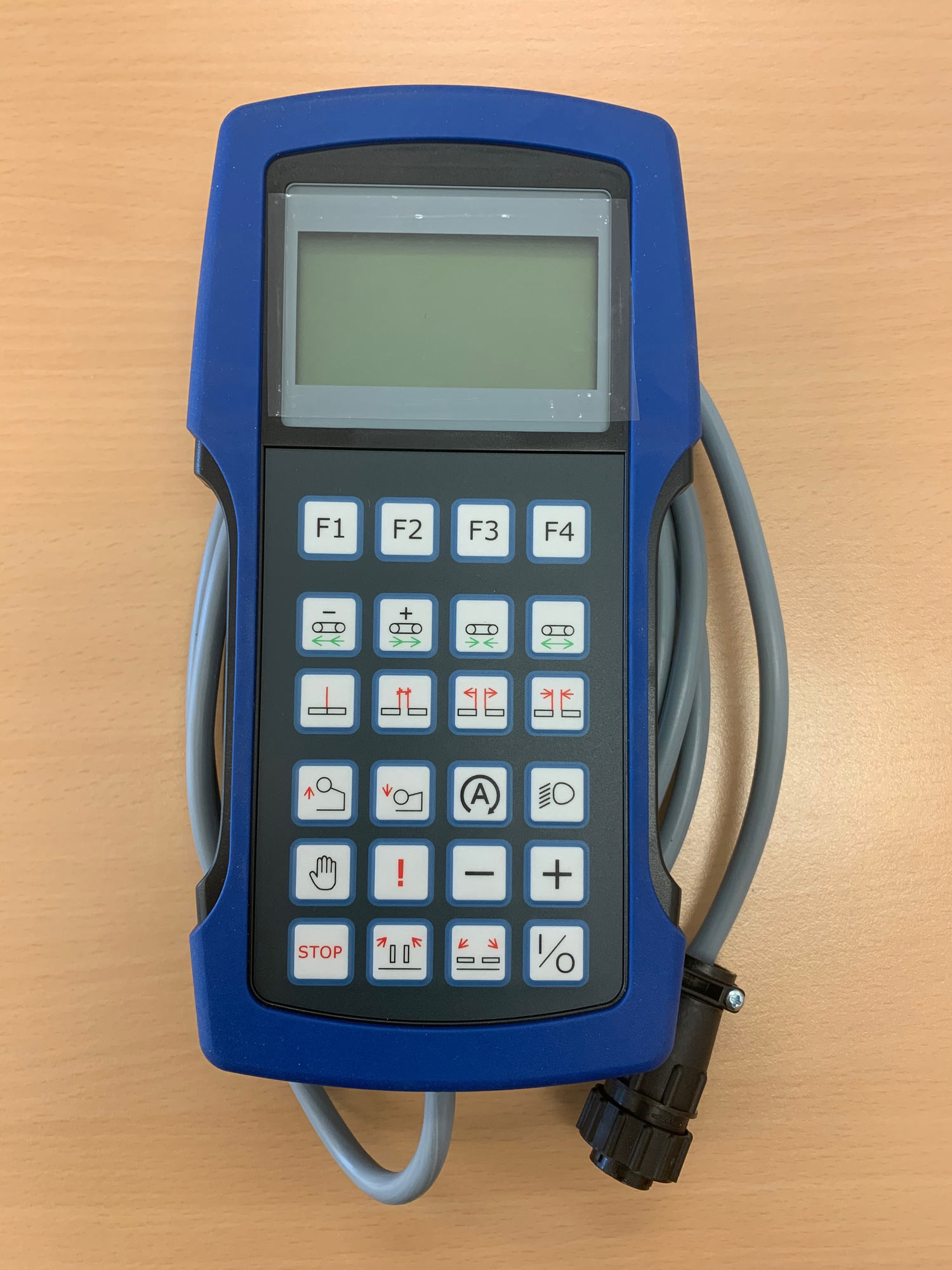

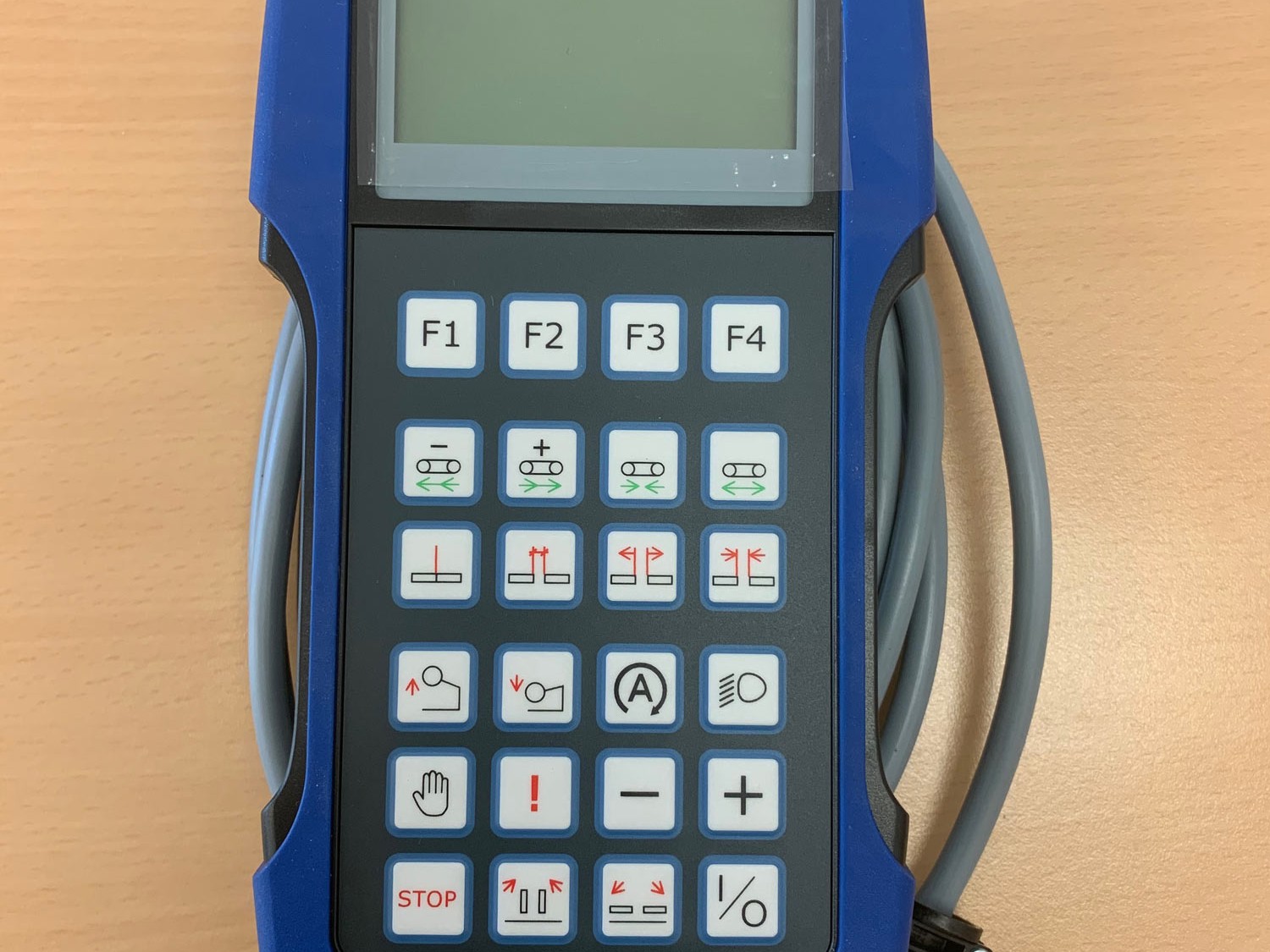

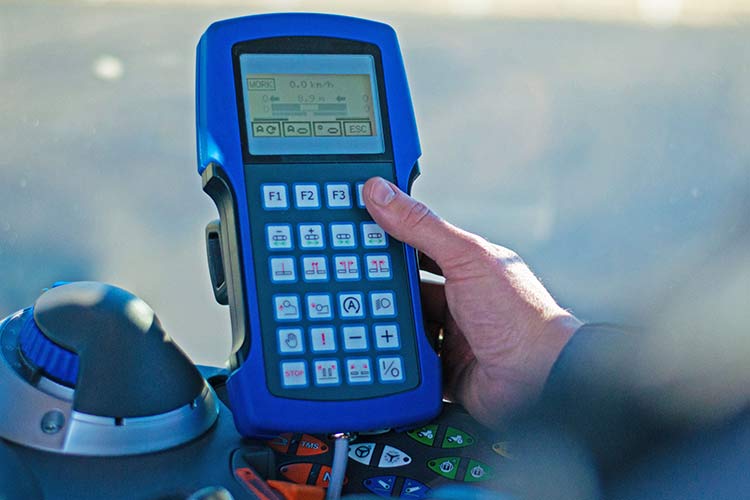

Operation of pick-up, rotor and belt via the on-board hydraulics (PTO 1000 rpm)Terminal (LS or pressure circulation required)
- Transport or working position
- Storage mode (side / center)
- Deposit direction (center deposit / night swath; side deposit left or right / plowing apart)
- Speed pick-up with rotor / speed belt
- Automatic belt shut-off at the headland
- Tape switch-off at the touch of a button
- Rotor height
- Rake height

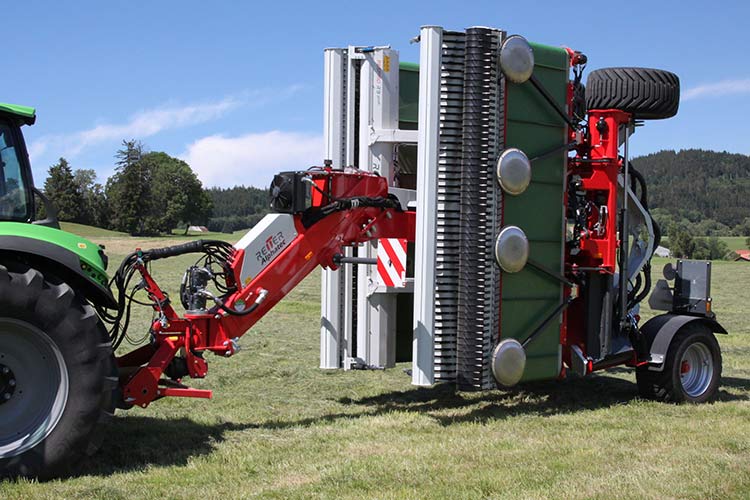

- Folding and unfolding at the touch of a button
- Secure transport locking via double hooks
- Air brake
Pivoting lower link hitch cat. 2 – pivot point behind lower link axle
- High maneuverability
- Very good tracking properties
No relative movement between pump and tank
- Suction and pressure lines do not move
- Longer service life of the hoses
Support foot on frame
Pick-up, rotor and belt drive via on-board hydraulics Double axial piston pump
- Delivery rate can be set on the terminal independently of the PTO speed
- Perfect adaptation to the harvest situation
Oil tank integrated in the frameOil cooler runs permanently
Robust construction from the attachment to the chassis
- Long service life
Unique 4-wheel chassis
- Smooth running and perfect ground tracking
- Precise management of the work units
- Very low ground pressure
- No rocking at the headland
- Perfect for individual lifting
- Extremely suitable for slopes – no tilting, no sliding
Sophisticated kinematics for guiding the work units
- Two lower links and one hydraulic top link
- Instantaneous pole is below the floor
- Simple upward movement of the work units
- The working unit is lighter when in use – less wear on the sliding discs, turf protection
- Enables higher driving speed
- Long service life
Perfect mechanical relief of the work units
- Low support weight
- Fast reaction due to spring relief
- Boomerang handlebars for even
- Relief over the entire working path +/- 300 mm
Fully-fledged lifting gear on the chassis boom
- 3-point attachment – best guidance over uneven floors
High ground clearance at the headland
- Ideal for driving over laid swaths
Work units are always lifted parallel to the floor
- Very fast entry and exit Individual excavation possible
- No rocking thanks to 4-wheel chassis
Flying suspension in the straw insert due to lowering limiter
- is made possible by 4-wheel chassis
Excavation of the 2 working units (2 DW)
Operation of pick-up, rotor and belt via the on-board hydraulics (PTO 1000 rpm)Terminal (LS or pressure circulation required)
- Transport or working position
- Storage mode (side / center)
- Deposit direction (center deposit / night swath; side deposit left or right / plowing apart)
- Speed pick-up with rotor / speed belt
- Automatic belt shut-off at the headland
- Tape switch-off at the touch of a button
- Rotor height
- Rake height
- Folding and unfolding at the touch of a button
- Secure transport locking via double hooks
- Air brake
Technology, that pays off.
The path to the future requires a fundamental rethink from sweeping to lifting. RESPIRO-Belt rakes are revolutionary in their features. The elastic, camless pick-up with small diameter, in combination with the dragging tines and the conveyor rotor, delivers excellent results.
Would you like to find out more about the pioneering RESPIRO technology?
Elastic pick-up
Best soil adaptation
- Best raking quality
- No aggressive ground contact
- Less wear on the tines
- Few tine breaks
Small diameter
Gentle and durable
- Small distance between the tine tips
- Low tine impact speed
- Powerful even with short feed
- Underruns large swaths
- Enables the dragging tine
Trailing tine geometry
Gentle and durable
- No aggressive ground contact possible
- Stones and foreign substances remain in place
- Less wear and breakage on the tines
- Additional gentle ground adjustment
- Slurry particles remain on the ground
Uncontrolled pick-up
maintenance-free
- Enables small diameter
- Radically simply built
- Significantly fewer components – no cam track
- Axially completely backlash-free
- Centre drive with 2 double bearings
Anti-Loss-System
No loose tines
- Unique tine attachment
- Tine winding is supported from the inside
- Tines broken in the winding are not lost
Sliding disc close to the tine
Best tine guidance
- Free turning
- Large contact surface
- Optional: Robalon sliding disc
Conveyor rotor & swath roller
Consistent good flow
- Ensures constant good flow
- Conveyor rotor hydraulically relieved and adjustable in height
- Swath roller guides the crop flow at the pick-up
Data sheet RESPIRO R9 profi
| Working width center swath [m] | 7,50 – 9,00 |
| Swath width [m] | 0,50 – 2,00 |
| Working width side swath [m] | 7,00 + Swath |
| Bandwidth [mm] | 1000 |
| Transport length [m] | 6,40 |
| Transport width [m] | 2,96 |
| Transport height [m] | 3,95 |
| Weight [kg] | 6400 |
| Tires | 500/50-22.5 |
| Area output [ha/h] | 4 – 10 |
| PTO shaft [U/min] | 1000 |
| Required hydraulic connections | 2 DW + LS |
| Required electrical connections | ISOBUS, 7-polig |
| Brake | DLB |
In this brochure you will find all information about the machine bundled, as a pdf for download.
RESPIRO technology on the rise
RESPIRO R9 Profi - The future of swathing
From flat land to steep slopes, from permanent grassland to exotic catch crops – the Respiro R9 profi belt rakes are in a class of their own. Versatility, quality of work, performance and reliability. Convince yourself.
